ASY-CR Series Serrated Single Reflectors
ASY-CR Series Serrated Single Reflectors
Supplied across UK & Ireland through APC Technology Group.

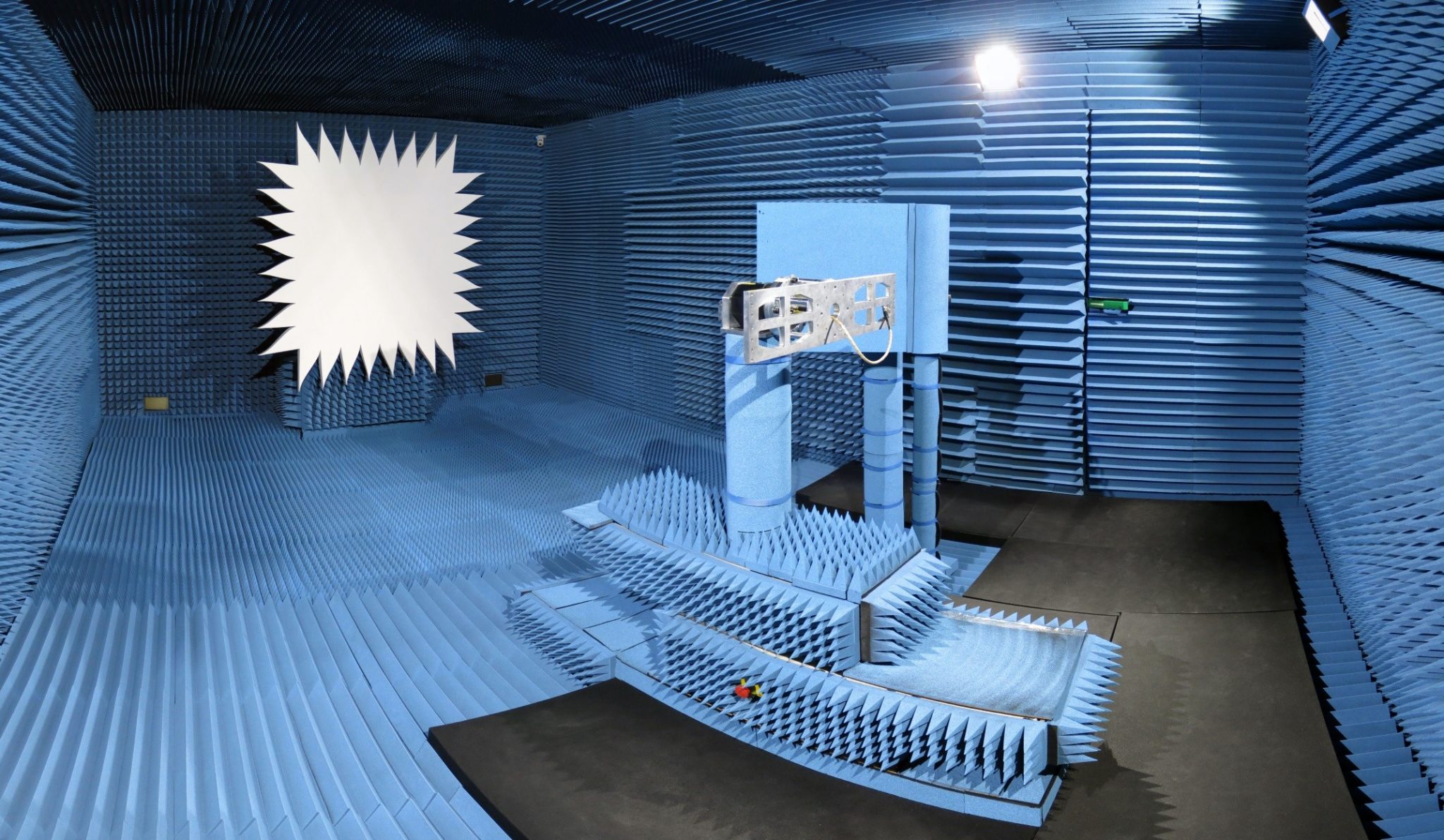

A Compact Antenna Test Range (CATR) is a type of range used for testing antenna systems at frequencies where obtaining Far-Field spacing to the AUT would be impractical using traditional free space methods. A CATR, based on a single reflector, uses a source antenna which radiates a spherical wave front, and one reflector to collimate the radiated spherical wave front into a planar wave front within the desired test zone. A CATR is used for microwave and millimetre wave frequencies where the 2Dยฒ/ฮป far-field distance is large, such as with high-gain reflector antennas.
ASYSOLโs family of reflectors are fabricated utilising the most advanced and accurate metal machining facilities, achieving typical surface accuracies of up to 15ฮผm required for todayโs high frequency demands. Edge diffraction is kept to a minimum by employing carefully designed serrations, optimised for low frequency operation to minimise interference in the desired beam pattern.
| Model Number | Frequency [GHz] |
Feed Location (1) |
Shape (2) |
Quiet Zone Size [m] |

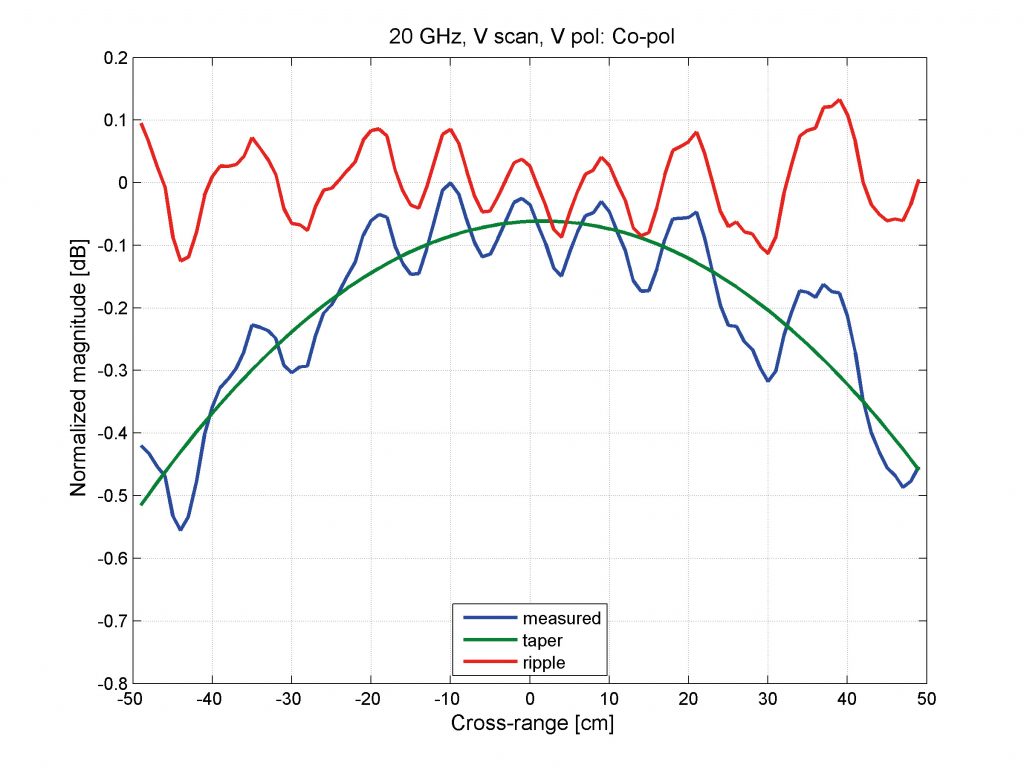

Amplitude Taper [dB] |
Typ Amplitude Ripple [dB] |
Phase Taper [deg] |
Typ Phase Ripple [deg] |

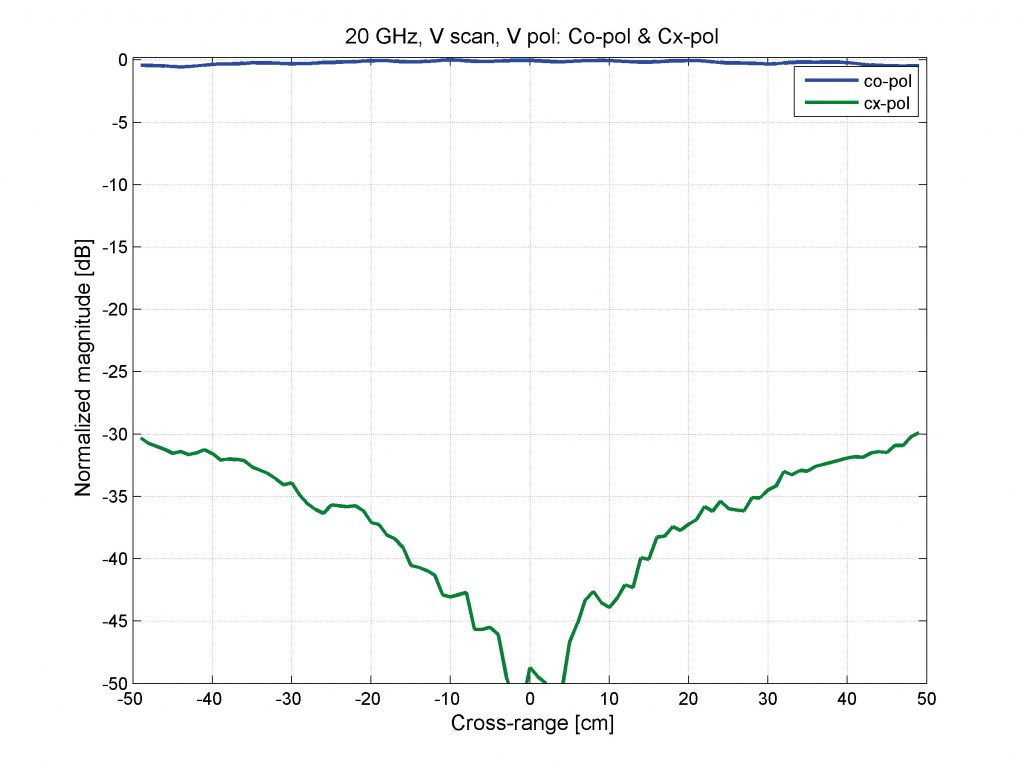

Max Cross Pol [dB] |
|---|---|---|---|---|---|---|---|---|---|
| ASY-CR-04-04 | 8.0 โ 200 | FF-LF-CF | C | 0.45 x 0.45 | <1 | ยฑ0.3 | 3 | ยฑ3 | 30 |
| ASY-CR-05-05 | 6.0 โ 200 | FF-LF-CF | C | 0.5 x 0.5 | <1 | ยฑ0.3 | 3 | ยฑ3 | 30 |
| ASY-CR-06-06 | 4.0 โ 200ย (3) | FF-LF-CF | C | 0.6 x 0.6 | <1 | ยฑ0.3 | 3 | ยฑ3 | 30 |
| ASY-CR-08-08 | 3.0 โ 200 | FF-LF-CF | C | 0.8 x 0.8 | <1 | ยฑ0.3 | 3 | ยฑ3 | 30 |
| ASY-CR-10-10 | 2.4 โ 200 | FF-LF-CF | C | 1.0 x 1.0 | <1 | ยฑ0.3 | 3 | ยฑ3 | 30 |
| ASY-CR-12-12 | 2.0 โ 200 | FF-LF-CF | C | 1.2 x 1.2 | <1 | ยฑ0.3 | 3 | ยฑ3 | 30 |
| ASY-CR-18-12 | 1.5 โ 200 | FF-LF-CF | E | 1.8 x 1.2 | <1 | ยฑ0.3 | 3 | ยฑ3 | 30 |
| ASY-CR-20-20 | 1.2 โ 200 | FF-LF-CF | C | 2.0 x 2.0 | <1 | ยฑ0.3 | 3 | ยฑ3 | 30 |
| ASY-CR-25-18 | 1.0 โ 200 | FF-LF-CF | E | 2.5 x 1.8 | <1 | ยฑ0.3 | 3 | ยฑ3 | 30 |
| ASY-CR-30-30 | 0.8 โ 200 | FF-LF-CF | C | 3.0 x 3.0 | <1 | ยฑ0.3 | 3 | ยฑ3 | 30 |
