Hioki Probe Selection
Hioki offers a huge range of current sensors and current probes to accommodate current measurement requirements in a variety of applications, from development and evaluation in advanced fields to quality control of commercial power supplies.
Hioki Selection of Current Sensors.
| Name | Amp | DC | Hole Size | Image |
|---|---|---|---|---|
| CT6862-05 | 50A | DC to 1 MHz | φ24 mm (0.94 in.) |  |
| CT6872, CT6872-01 | 50A | DC to 10 MHz | φ24 mm (0.94 in.) |  |
| CT6863-05 | 200A | DC to 500 kHz | φ24 mm (0.94 in.) |  |
| CT6873, CT6873-01 | 200A | DC to 10 MHz | φ24 mm (0.94 in.) |  |
| CT6875A | 500A | DC to 2 MHz | φ36 mm (1.42 in.) |  |
| CT6875A-1 | 500A | DC to 1.5 MHz | φ36 mm (1.42 in.) | |
| CT6904A | 500A | DC to 4 MHz | φ36 mm (1.42 in.) |  |
| CT6904A-1 | 500A | DC to 2 MHz | φ36 mm (1.42 in.) | |
| CT6904A-2 | 800A | DC to 4 MHz | φ32 mm (1.26 in.) |  |
| CT6904A-3 | 800A | DC to 2 MHz | φ32 mm (1.26 in.) | |
| CT6876A | 1000A | DC to 1.5 MHz | φ36 mm (1.42 in.) |  |
| CT6876A-1 | 1000A | DC to 1.2 MHz | φ36 mm (1.42 in.) | |
| CT6877A, CT6877A-1 | 1000A | DC to 1 MHz | φ80 mm (3.15 in.) |  |
| Name | Amp | Dc | Hole Size | Image |
|---|---|---|---|---|
| CT6700 | 5 A | DC to 50 MHz | DC to 50 MHz |  |
| CT6701 | 5 A | DC to 120 MHz | DC to 120 MHz |  |
| Name | Amp | DC | Hole Sizes | Image |
|---|---|---|---|---|
| 9694 | 5 A | 40 Hz to 5 kHz | φ15 mm (0.59 in.) |  |
| 9695-02*1 | 50 A | 40 Hz to 5 kHz | φ15 mm (0.59 in.) |  |
| 9660 | 100 A | 40 Hz to 5 kHz | φ15 mm (0.59 in.) |  |
| 9695-03*1 | 100 A | 40 Hz to 5 kHz | φ15 mm (0.59 in.) |  |

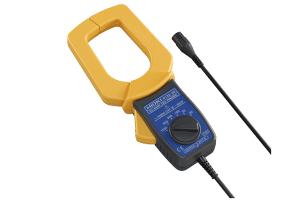

| 9010-50 | 500 A 1000 A | 40 Hz to 1 kHz | φ46 mm (1.81 in.) |  |

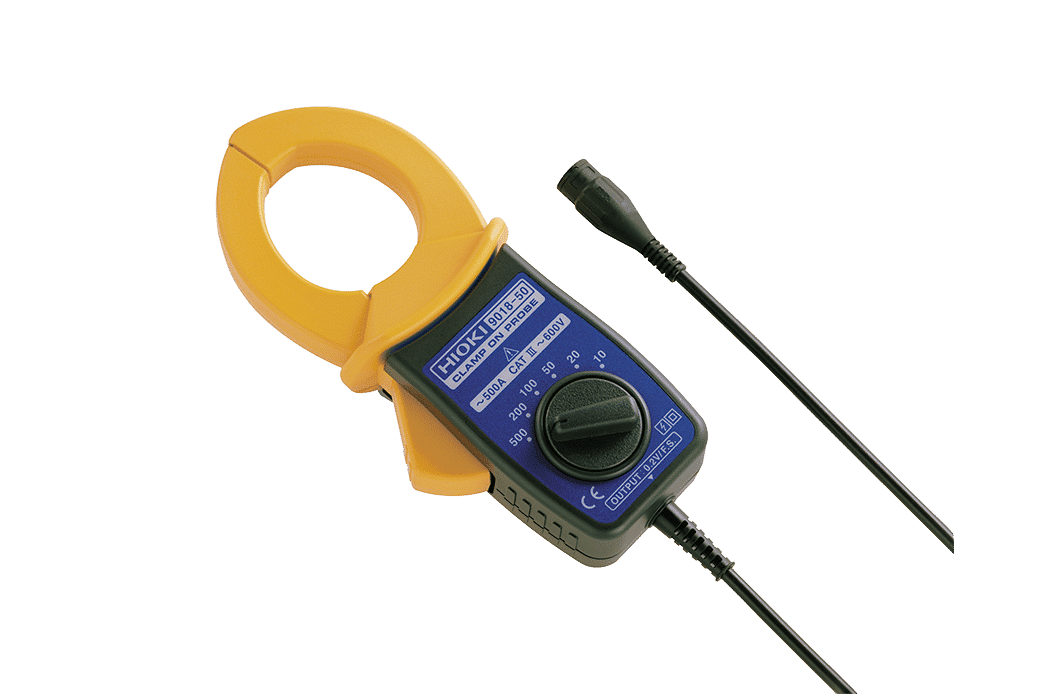

| 9018-50 | 500 A 1000 A | 40 Hz to 3 kHz | φ46 mm (1.81 in.) |  |
| 9132-50 | 500 A 1000 A | 40 Hz to 1 kHz | φ46 mm (1.81 in.) |  |
| CT6500 | 500 A | 40 Hz to 1 kHz | φ46 mm (1.81 in.) |  |
| 9661 | 500 A | 40 Hz to 5 kHz | φ46 mm (1.81 in.) |  |
| 9669 | 1000 A | 40 Hz to 5 kHz | φ55 mm (2.17 in.) |  |
*1: The 9695-02 and 9695-03 use an M3 terminal block for their
output terminals. Optional Connection Cable 9219 is required.
*2: Range-switched (10, 20, 50, 100, 200, 500 A AC )
*3: Range-switched (20, 50, 100, 200, 500, 1000 A AC )
| Name | Amp | DC | Hole Sizes | Image |
|---|---|---|---|---|

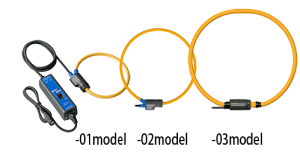

| CT9667-01 | 500 A, 5000 A | 10 Hz to 20 kHz | φ100 mm (3.94 in.) |  |
| CT9667-02 | 500 A, 5000 A | 10 Hz to 20 kHz | φ180 mm (7.09 in.) |  |
| CT9667-03 | 500 A, 5000 A | 10 Hz to 20 kHz | φ254 mm (10.0 in.) |  |
| Name | Amp | DC | Hole Sizes | Image |
|---|---|---|---|---|
| 9657-10 | 10 A | 40 Hz to 5 kHz | φ40 mm (1.57 in.) |  |
| 9675 | 10 A | 40 Hz to 5 kHz | φ30 mm (1.18 in.) |  |
| Name | Amp | Dc | Hole Size | Image |
|---|---|---|---|---|

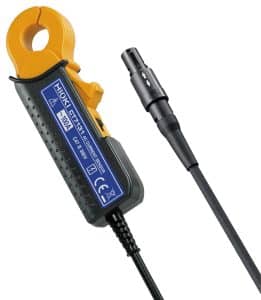

| CT7126 | 60 A | 40 Hz to 20 kHz | φ15 mm (0.59 in.) |  |
| CT7131 | 100 A | 40 Hz to 20 kHz | φ15 mm (0.59 in.) |  |
| CT7731 | 100 A | DC to 5 kHz | φ33 mm (1.30 in.) |  |
| CT7631 | 100 A | DC to 10 kHz | φ33 mm (1.30 in.) |  |
| CT7736 | 600 A | DC to 5 kHz | φ33 mm (1.30 in.) |  |
| CT7636 | 600 A | DC to 10 kHz | φ33 mm (1.30 in.) |  |
| CT7136 | 600 A | 40 Hz to 20 kHz | φ46 mm (1.81 in.) |  |
| CT7742 | 2000 A | DC to 5 kHz | φ55 mm (2.17 in.) |  |
| CT7642 | 2000 A | DC to 10 kHz | φ55 mm (2.17 in.) |  |
| Name | Amp | DC | Hole Sizes | Image |
|---|---|---|---|---|
| CT7116 | 6 A | 40 Hz to 5 kHz | φ40 mm (1.57 in.) |  |
