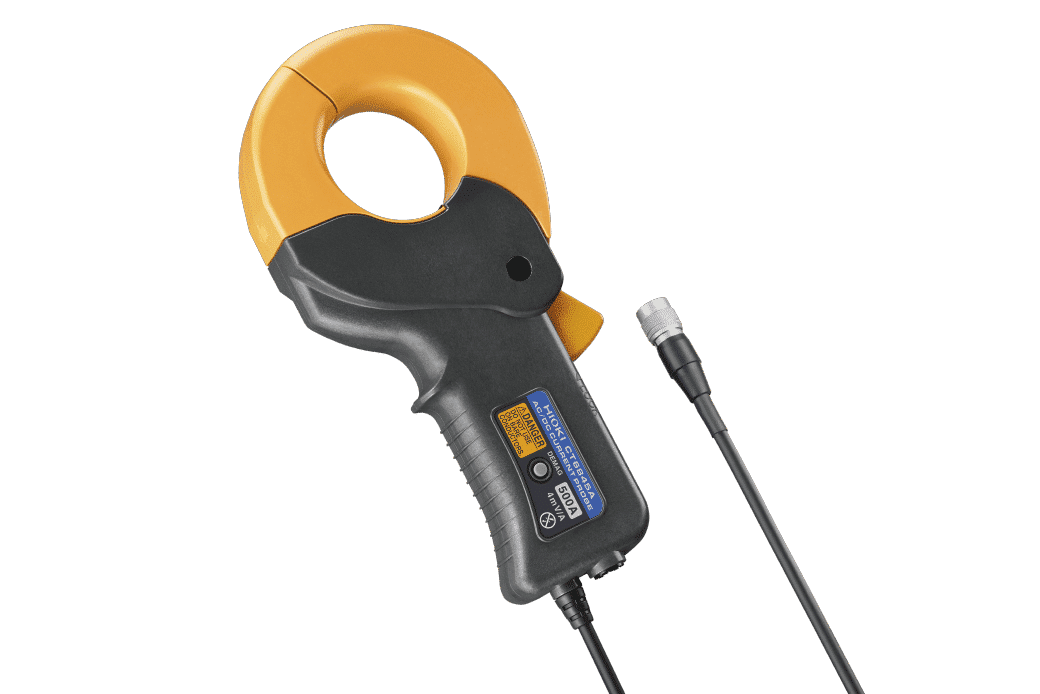

Hioki CT6845A AC/DC Current Probe

Hioki CT6845A AC/DC Current Probe

Hioki’s clamp type AC/DC current sensors can be connected directly to Hioki Power Analyzers and Memory HiCorders.
Also, it can be connected to Power Meters, Oscilloscopes, DMMs, etc. by using an optional sensor unit.

Use with an instrument with a high input impedance of 1 MΩ or higher.

Replacing the discontinued Hioki CT6845 500 A AC/DC, PL23 terminal and Hioki CT6845-05 500 A AC/DC, ME15W terminal current sensors.

Basic specifications

Rated current 500 A AC/DC
Frequency bandwidth DC to 200 kHz
Phase: DC to 100 kHz
Core diameter φ 50mm
Max. allowable input ±1500 A peak (Within 20 ms in an environment of 40°C or less)
Output voltage 4 mV/A
Output resistance 50 Ω ± 10 Ω
Amplitude accuracy DC: 0.2% + 0.02%, DC < f ≤ 100 Hz: 0.2% + 0.01%
Linearity ±20 ppm Typical
Common-Mode Voltage Rejection Ratio (CMRR) DC to 1 kHz:150 dB or greater

1 kHz to 10kHz:130 dB or greater

10 kHz to 100 kHz:100 dB or greater

(effect on output voltage and common mode voltage)

Automatic phase correction Automatically performs phase correction when connected to PW8001
Operating temperature, humidity -40 °C to +85 °C, 80% RH or less
Standards Safety: IEC 61010 Type D, EMC: IEC 61326
Withstand voltage AC 4260 V
Power supply Power suppled via the Power Analyzer PW8001, PW6001, PW3390, Sensor Unit CT9555, CT9556, CT9557, or 3CH CURRENT UNIT U8977
Max. rated power 7 VA max. (at 500 A/55 Hz, ±12 V power requirement)
Dimensions and mass 238mm W × 116mm H × 35mm D, 860g, cord length: 3m
Accessories Instruction manual ×1, Mark bands ×6, Carrying Case×1

Category:

You may also like…

Key Features

  • Frequency bandwidth DC to 200 kHz
  • Rated current 500 A AC/DC
  • Power supplied via the measurement instrument (when connecting Hioki Power Analyzer or Memory HiCorder)
  • Ideal for use in environmental testing with broad -40°C to 85°C temperature range
  • Ideal for EV inverter evaluation and PV power generation PCS evaluation
  • Single-handed operation and robust locking mechanism
