3119B Double Ridged Waveguide Horn
3119B Double Ridged Waveguide Horn
Supplied across UK & Ireland through APC Technology Group.

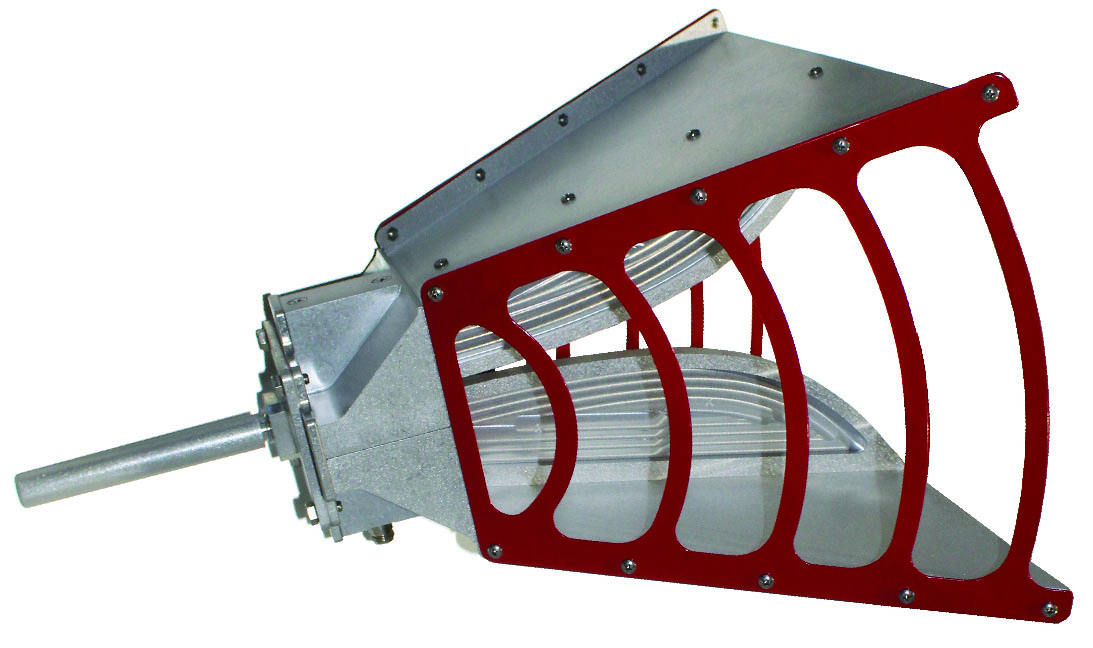

ETS-Lindgren’s Model 3119B Double-Ridged Waveguide Horn is a the latest addition to our family of double-ridged waveguides for wireless and EMC measurement.
Users of this antenna benefit from uniform illumination of target surfaces and accurate gain measurement.
Frequency Minimum:ย 400 MHz
Frequency Maximum:ย 6 GHz
Maximum Continuous Power:
- 400 MHz: ย 1500 W
- 6 GHz: ย 800 W
Peak Power:ย 2500 W
Impedance (Nominal): 50 ฮฉ
Pattern Type:ย Directional
Pattern Type:ย Directional
Polarization:ย Linear
VSWR Ratio: (Average) 3.5:1 Maximum; <2:1 Above 500 MHz
Connectors:ย Type N
