3112 Double-Ridged Guide Antenna

Product enquiry for 3112 Double-Ridged Guide Antenna

More InfoQuote

Frequency Range: 100 MHz – 1 GHz

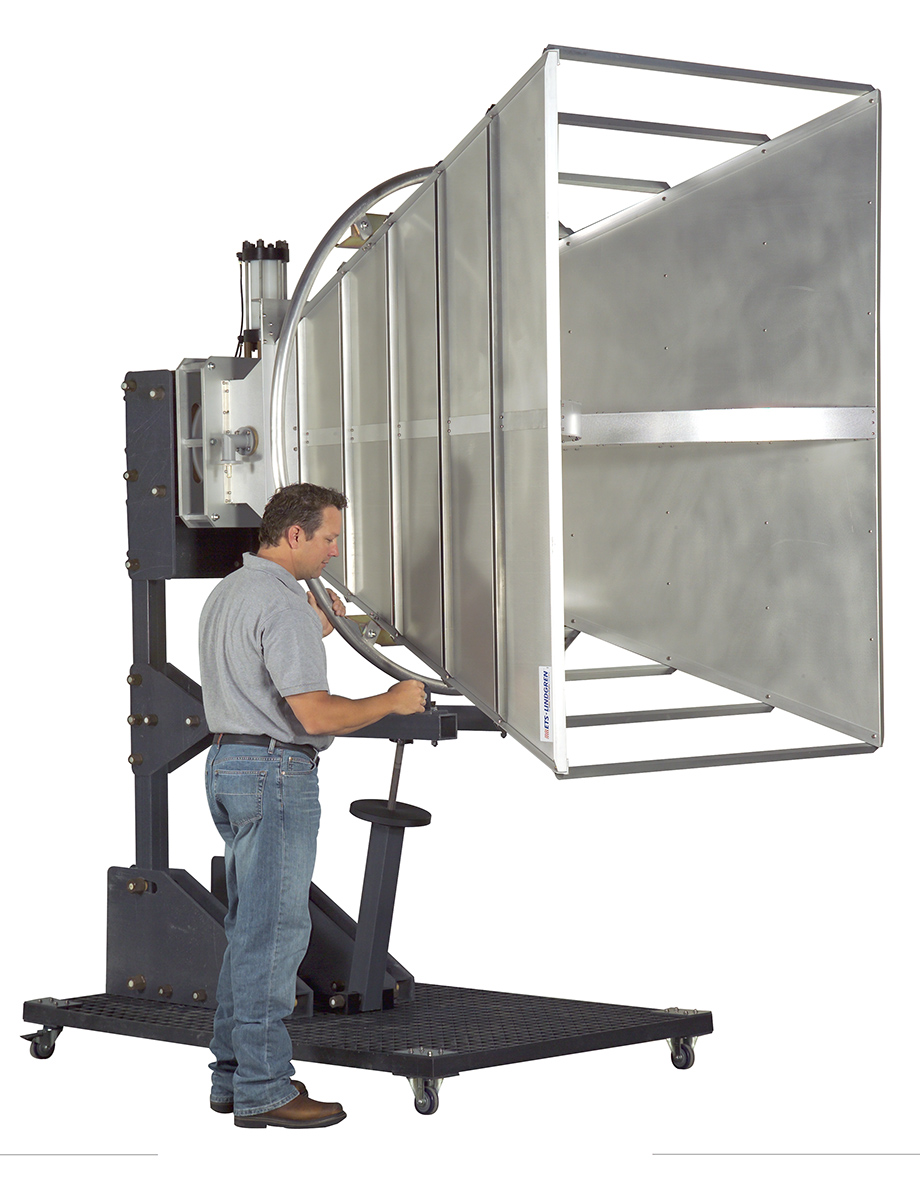

ETS-Lindgren’s Model 3112 Double-Ridged Waveguide Horn is a linearly polarized broadband antenna providing high gain and excellent VSWR characteristics over a broadband frequency range of 100 MHz to 1 GHz. The antenna is especially effective for generating high electromagnetic fields with relatively low power input.

The 3112’s high gain makes it suitable for generating the high fields (200 V/m) necessary per the ISO 11451-2 and SAE J551/11 full-vehicle automotive radiated immunity standards with less than 2 kW. Additionally, since the model 3112 is a double-ridge waveguide horn, it is the accepted antenna for MIL-STD-461E, bringing the desirable performance of this type of antenna lower frequencies.

Like other double-ridged waveguides in this series, the Model 3112 is precision manufactured from aluminium, making it durable and relatively lightweight. To maximize performance, an EIA 1 5/8” flange connector is used (other connectors available upon request). Each antenna is individually calibrated at our A2LA accredited test lab and comes with actual factors and a signed Certificate of Conformance. A two-year warranty is included.

Electrical Specifications

Frequency Minimum 100 MHz
Frequency Maximum 1 GHz
Impedance (Nominal) 50 Ω
Maximum Continuous Power 800 W
Maximum Power 2 kW
Pattern Type Directional
Polarization Linear
VSWR <1.6:1

Standard Configuration

  • Individually Calibrated at 1 m per SAE ARP 958 Actual antenna factors and a signed Certificate of Calibration Conformance provided.
  • Antenna assembly.
  • Mounting brackets, welded aluminium support frame and front rest bar
  • Two Year Warranty
