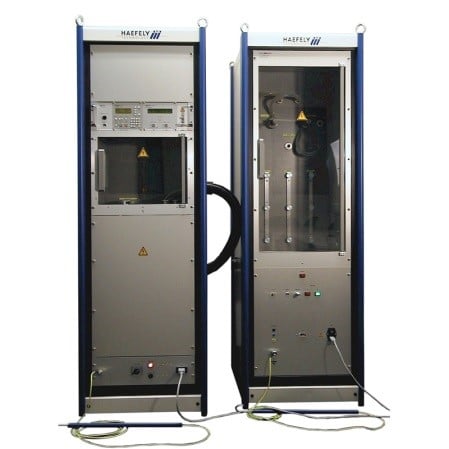

PSURGE 30.2 – Modular 30kV/30kA Surge Test System

PSURGE 30.2 – Modular 30kV/30kA Surge Test System

This test system is used to perform high energy surge tests. Energy surges are generated by atmospheric lightning in power circuits. A surge is characterized by high energy and relative fast front times. Pulse durations are widely variable as are the coupling paths. The PSURGE 30.2 is designed to generate a broad variety of surge impulses. Impulse modules can be exchanged quickly allowing PSURGE 30.2 to be used for different applications. Impulse module type is detected by the system software.

The built-in microprocessor control unit serves as user interface and control all the internal functions. When adding the remote control option, it is possible to use the PSURGE 30.2 with the WinPATS control and reporting software. The built-in microprocessor control unit serves as user interface and control all the internal functions.

Category:

Key Features

  • Up to 30kV impulse voltage
  • Up to 30kA impulse current
  • Automatic polarity switching
  • Peak voltage and current monitoring
  • Integrated large test cabinet
  • Remote control option
  • International Application – Specifically designed to meet and exceed the requirements of IEC, EN, ITU and ANSI tests for power line applications.
  • Modular System – The impulse circuit can be changed quickly and easily by the user. Only one generator is needed for up to four impulse shapes.
  • Safe and Easy – The interlocked test cabinets allow your operators to test safely and easily. The warning lamp indicates the system status clearly.
