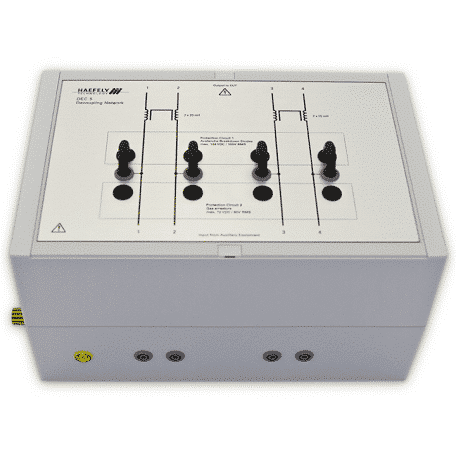

DEC 5 Coupling/Decoupling Networks

The DEC 5 is used for decoupling auxiliary equipment from an EUT tested with either 1,2/50µs – 8/20µs combination wave impulses or 10/700µs impulses up to 6.6kV peak. It is used to decouple unshielded symmetrical data and signal lines according standards IEC 61000-4-5 Edition 3 and ITU K.44. Up to 4 wires can be tested simultaneously.

To obtain maximum flexibility only decoupling and protection elements are included in the DEC 5. Coupling circuits, which depends on the EUT to be tested, can be placed separately in the test setup. Manual coupling selection of the protection elements for best protection of the auxiliary equipment.

Default protection elements are gas arrestors and breakdown avalanche diodes. With such elements the capacitive load to the EUT lines is small. The decoupling elements can be selected easily. It is also possible to test without any protection elements.

Category:

Key Features

  • Inductors 20mH compensated
  • Combination wave 1,2/50us – 8/20us impulses
    10/700us telecom impulses
  • 100kHz ring wave impulses
  • Breakdown avalanche diodes and gas arrestors as protection elements
  • Up to 4 wires can be tested
  • Signal Bandwidth up to some 100kHz
