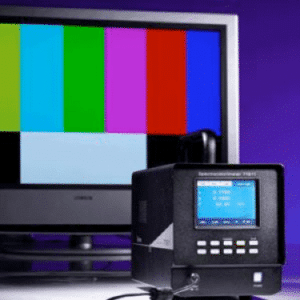

71611 Spectrocolorimeter

71611 Spectrocolorimeter

The Chroma 71611 Spectrocolorimeter is specially designed to meet the requirements of the laboratory and production line by implementing the contact and non-contact measurement to test the luminance and colour presentation of display panels. It has been developed with the most advanced digital...

Description

The Chroma 71611 Spectrocolorimeter is specially designed to meet the requirements of the laboratory and production line by implementing the contact and non-contact measurement to test the luminance and colour presentation of display panels.

It has been developed with the most advanced digital signal processor and photoelectric conversion technology, the Chroma 71611 is able to measure the colour with high speed, accuracy and stability when integrated with precision optics and circuit design.

The spectrophotometric technique applied to 71611 can measure the display panel spectral precisely and calculate the luminance and chromaticity correctly. 0.01cd/m2 low luminance requirement.

The Chroma 71611 is able to control the Video Pattern Generator and DUT directly for automation without using a PC to save the cost of PC purchase and management. Moreover, there are functions of contrast measurement, result judgment and programmable test items to fulfill the needs of automated test and increase the production efficiency.

Key Features

  • Use of spectrophotometric technique
  • Suitable for laboratories and production lines
  • Displays luminance, chromaticity and spectral measurement
  • 0.01 cd/m2 low luminance measurement
  • Wide range of luminance display: 0.01 to 2000 cd/m2
  • Highly accurate measurement
  • Up to 9 display modes:
    xyY, TΔuvY, u’ v’ Y, XYZ, λd/Pe, Spectral, Contrast, Program and User Define
  • Wide view colour LCD to facilitate the reading and operation
  • Able to control the Video Pattern Generator and DUT
  • Built-in contrast measurement for contrast ratio calculation
  • Embedded with programmable test items to test the planned items with one key
  • Support USB interface for data control and process
