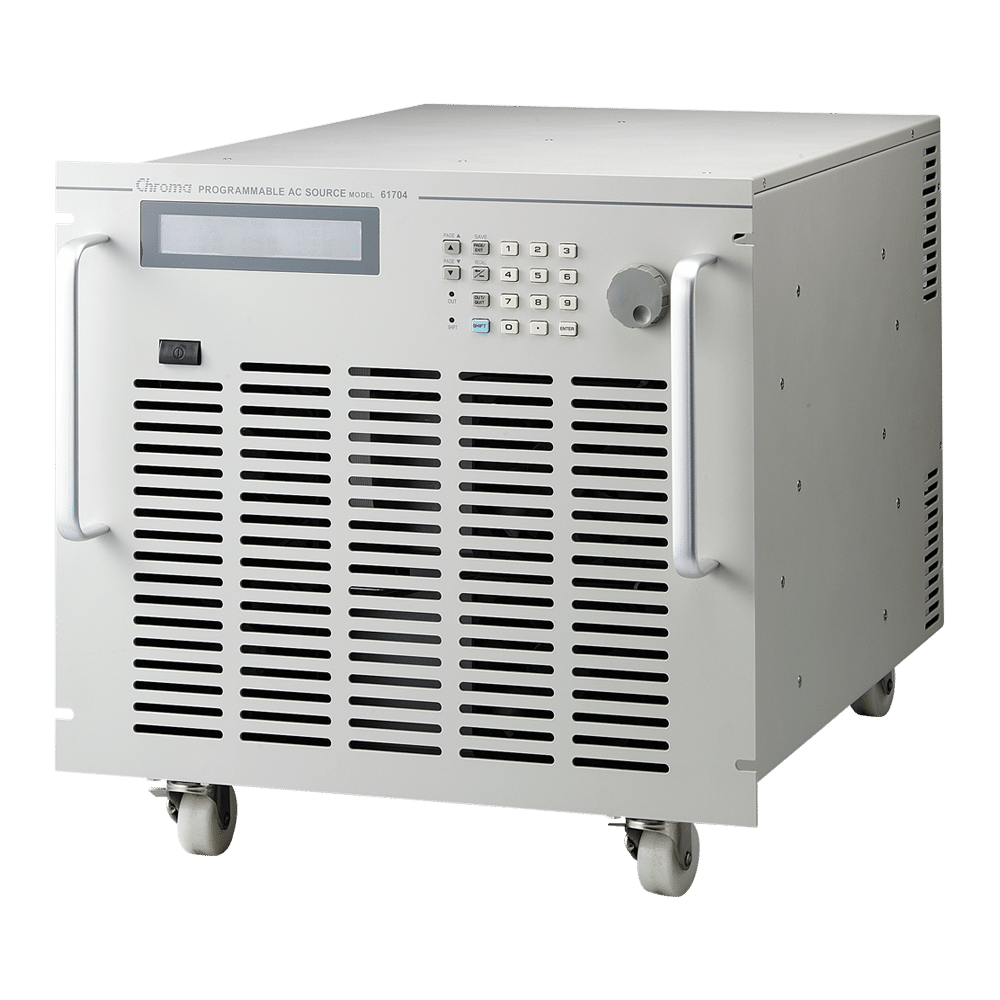

61700 Series Programmable AC Source

Product enquiry for 61700 Series Programmable AC Source

More InfoQuote

The Chroma Programmable AC Power Source / Supply model 61700 series delivers pure, 5-wire, 3-phase AC power. Unlike the traditional 3-phase AC power source, it includes low power rating models at very low cost. Users can program voltage and frequency, measure the critical characteristics of the output on its LCD display.

It delivers the right solution to simulate all kinds of input condition of UUT to be utilized in R&D and QA. It is also suitable for commercial applications from laboratory testing to mass productions.

The 61700 supplies the output voltage from 0 to 300VAC and it can be set individually for each phase. Users also can set the phase angle from 0o to 360o. These kinds of functions allow the 61700 series to simulate unbalanced 3-phase power.

Because of the wide output frequency from 15 to 1200Hz, it is suitable for avionics, marine and military application. The AC+DC mode extends the output function to simulate abnormal situations when the power line contains DC offset.

The 61700 series uses the state-of-the-art PWM technology, so it is capable of generating very clean AC output, with typical distortion less than 0.3%. With power factor correction circuit, the 61700 series yields higher efficiency and deliver more output power.

Key Features

  • Output Rating:
    Power: 1.5KVA – 12kVA 3 Phase Output
  • Voltage: 0-150V/0-300VAC
  • Frequency: 15-1.2kHz
  • Phase angle: 0-360˚ Programmable
  • Built-in PFC, provides input power factor of over 0.98
  • AC+DC output mode
  • Comprehensive measurement capability, V, Irms, Ipk, Iinrush, P, PF, CF of current etc.
  • Programmable r.m.s. current limit
  • Turn on, turn off phase angle control
  • Full protection: OP, OC, OV and OT protection
  • Optional GPIB and RS-232 interface
  • Advanced PWM technology delivers high power density in a compact rack-mountable package
