61500 Series Programmable AC Source

Product enquiry for 61500 Series Programmable AC Source

More InfoQuote

The Chroma AC power source / supply 61500 Series sets a new standard for high performance AC power supplies. It is equipped with powerful features such as power line disturbance (PLD) simulation, programmable output impedance, comprehensive measurement functions, wave-shape synthesis and regulation test software. These features make the 61500 series ideal for commercial, power electronics, avionics, military and regulation test applications from bench-top testing to mass production.

With the versatile programmable voltage functions and easy-use operation software, the 61500 series enables users to perform the pre – compliance tests against IEC 61000-4-11 and compliance test against IEC 61000-4-13/-4-14/-4-28 immunity test regulations

Using the state-of-the art PWM technology, the 61500 series is capable of delivering up to 6 times the peak current compared to its maximum rated current that makes it ideal for inrush current test.

The AC+DC modes extend the applications for not only pure AC voltage but also DC component for testing DC offset in laboratory. Applying the advanced DSP technology, the 61500 series is able to provide precision and transient voltage waveform as well as measurements such as RMS voltage, RMS current, true power, power factor, current crest factor and up to 40 orders of current harmonic components.

Available Models

61500 Series – 0 to 4kVA Single Phase – Download: Datasheet

61511/61512 – 12kVA to 160kVA Single / Three Phase – Download: Datasheet

Key Features

  • For LED Power Driver testing (lighting & TV backlight)
  • Capabilities
  • Output Rating : Power : 500VA – 36kVA, Voltage range: 0 – 300VAC, 212/424VDC
  • AC+DC output mode for voltage DC offset simulation
  • Programmable slew rate setting for changing voltage and frequency
  • Low output impedance for testing IEC 61000-3-2 ( 61505 )
  • Programmable output impedance for testing IEC 61000-3-3

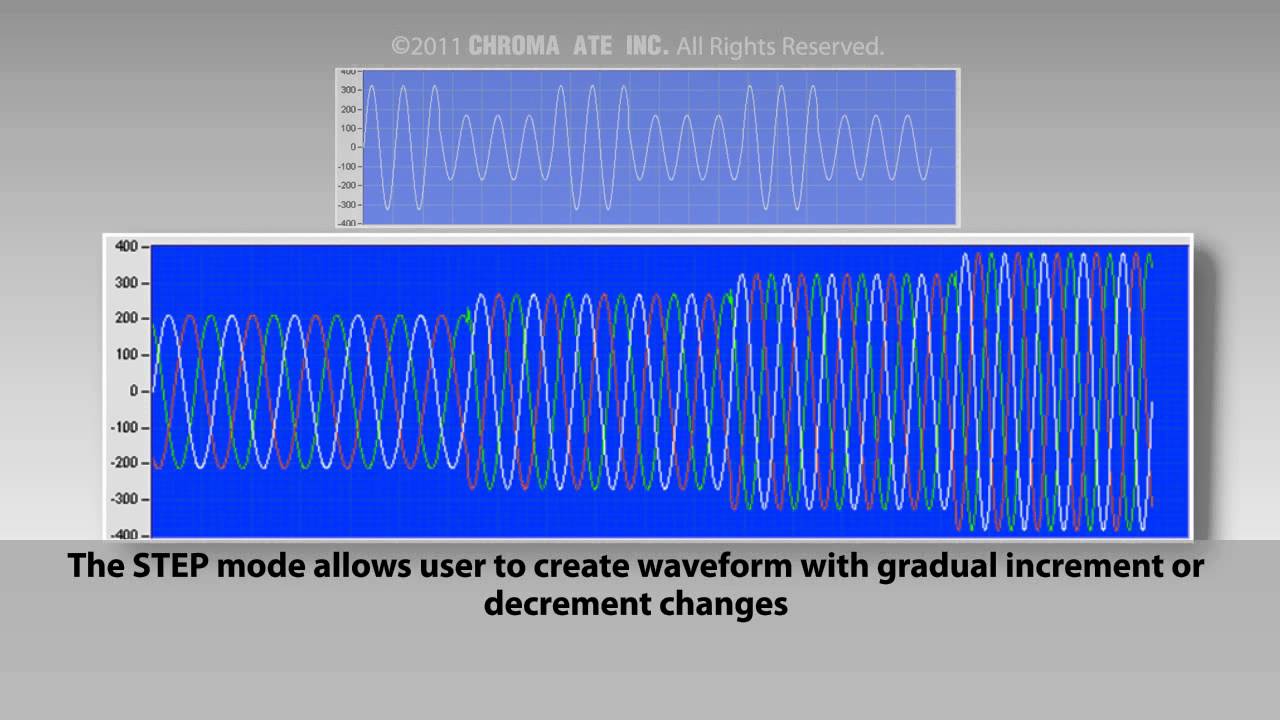

  • LIST, PULSE, STEP mode function for testing power line disturbance (PLD) simulation capability
  • IEC 61000-4-11 voltage dips, short and variation simulation
  • Harmonics, inter-harmonics waveform synthesizer for testing IEC 61000-4-13
  • ty to test Multi-UUT/Multi-output concurrently
  • Provides optimised standard test parameters
  • Open architecture software

-Expandable hardware support
-Supports instruments with GPIB/RS-232/RS485/I2C interfaces
-User editable test library
-User editable test programs
-user editable test reports
-Statistical reports
-On-line Softpanel
-User authority control
-Activity log
-Supports bar code reader

  • Windows based software
