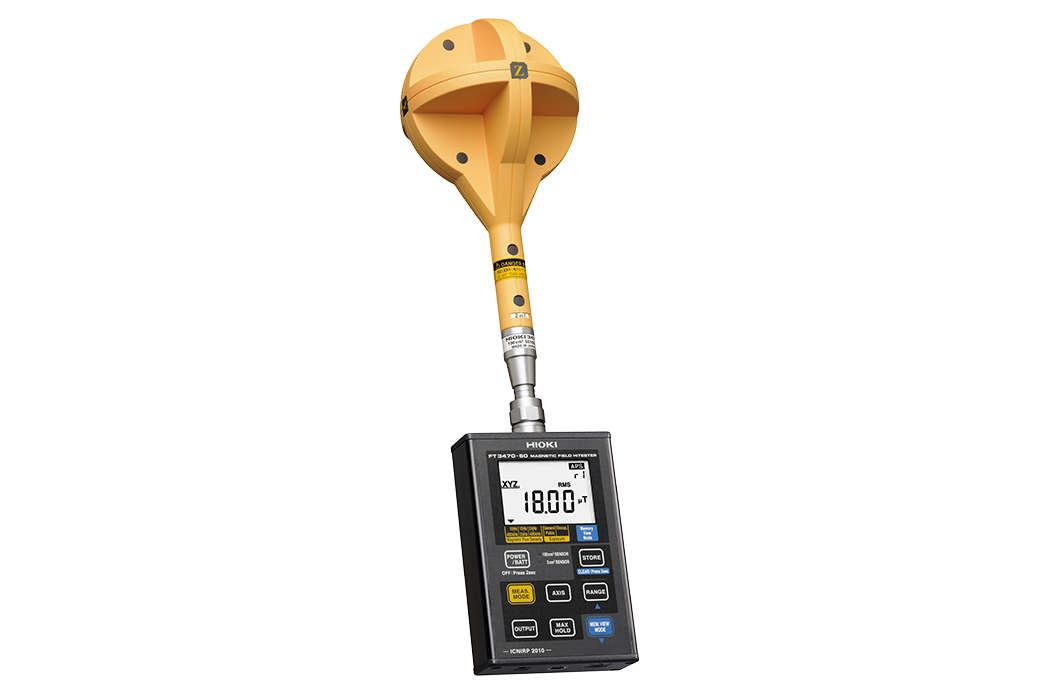

Hioki FT3470-52 Magnetic Field HiTester
Introducing the MAGNETIC FIELD HiTESTER FT3470-52, a top-of-the-line magnetic field meter designed to provide accurate and reliable measurements for 3-axis magnetic flux density. Developed by Hioki, a trusted brand in the industry, this meter is perfect for assessing conformance to ICNIRP 2010 and IEC/EN62233 standards, as well as conducting research on magnetic field exposure.
Equipped with two sensors, the FT3470-52 is versatile and able to measure magnetic flux density and magnetic field exposure generated by products manufactured at a customer site or produced by devices in a customer environment. The robust construction of this meter ensures it can withstand tough working conditions and provide consistent results every time.
The MAGNETIC FIELD HiTESTER FT3470-52 is perfect for a range of industries, including manufacturing, research, and development. Its user-friendly interface and intuitive controls make it easy to use, even for those with limited technical expertise. So, whether you’re assessing magnetic field exposure in the workplace or researching the effects of magnetic fields, the FT3470-52 is the perfect tool for the job. Invest in the MAGNETIC FIELD HiTESTER FT3470-52 today and experience the benefits of reliable and accurate magnetic field measurement.
Basic specifications (Accuracy guaranteed for 1 year, Post-adjustment accuracy guaranteed for 1 year)
| Magnetic flux density (Bandwidth) | 10 Hz to 400 kHz/ 10 Hz to 2 kHz/ 2 kHz to 400 kHz | |||||
|---|---|---|---|---|---|---|
| Exposure level | General Public/ Occupational | |||||
| Display | Single axes X, Y, Z (2000 counts), Composite RMS value R (3464 counts), Magnetic flux density (unit: T, G, A/m), Exposure level (unit: %) | |||||
| Magnetic flux density/Ranges and accuracy | [X, Y, Z axes] Effective measuring ranges: 2.000 μT to 2.000 mT, 4 ranges, Accuracy: ±3.5% rdg. ±0.5% f.s. [R axis] Effective measuring ranges: 3.464 μT to 3.464 mT, 4 ranges, Accuracy: ±3.5% rdg. ±0.5% f.s. [Valid measurement frequency range] at 10 Hz-400 kHz mode: 50 Hz to 100 kHz at 10 Hz-2 kHz mode: 50 Hz to 1 kHz at 2 kHz-400 kHz mode: 5 kHz to 100 kHz |
|||||
| Exposure level/Ranges and accuracy | [X, Y, Z axes] Effective measuring ranges: 20.00 % to 200.0 %, 2 ranges [R axis] Effective measuring ranges: 34.64 % to 346.4 %, 2 ranges, Accuracy: Smoothed edges 50 Hz to 1 kHz ±3.5% rdg. ±0.5% f.s. Accuracy: Smoothed edges 1 kHz to 100 kHz ±5.0% rdg. ±0.5% f.s. |
|||||
| Interfaces | [Supporting output] Resultant RMS level output, Exposure level output, Waveform output of magnetic flux density X/ Y/ Z each axis, Output rate: 0.1 mV/display value count [USB 1.1] Data saving with the PC application |
|||||
| Other functions | Memory function: Up to 99 measured value data, Slow function, Holds the maximum value, Auto power off, Buzzer sound on/off | |||||
| Power supply | LR6 (AA) alkaline battery ×4, 0.8 VA (at battery operation), Continuous use of 10 hr, or AC adapter 9445-02 (1.0 VA max. consumption) | |||||
| Dimensions and mass | Main unit: 100 mm (3.94 in) W × 150 mm (5.91 in) H × 42 mm (1.65 in) D, 830 g (29.3 oz), (including batteries) 100 cm^2 Sensor: φ122 mm (4.80 in) × 295 mm (11.61 in)L, 220 g (7.8 oz) 3 cm^2 Sensor: □ 27 mm (1.06 in) × 165 mm (6.50 in)L, 95g (3.4 oz) |
|||||
| Included accessories | 100 cm^2 Sensor ×1, 3 cm^2 Sensor ×1, Instruction manual ×1, CD-R (PC application software Data Viewer for FT3470) ×1, USB cable ×1, LR6 (AA) alkaline battery ×4, AC adapter 9445-02 ×1, Extension cable 9758 ×1, Output cable 9759 ×1, Carrying case ×1 | |||||
