3165-01 Dual-Polarised Dual-Vivaldi Array Antenna
Frequency Range: 700 MHz – 6 GHz

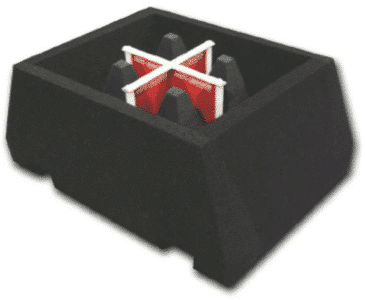

ETS-Lindgren’s 3165-01 Absorber Nested Dual-Polarized Dual-Vivaldi Array Antenna is designed for applications where source antenna effects must be minimized, such as chambers where the device under test (DUT) is illuminated from different directions.
The Model 3165-01 has a frequency range of 700 MHz – 6 GHz, which covers most cell phone, Wi-Fi, WiMAX and GPS bands.
This antenna is designed to be nested in the anechoic absorber lining of a chamber. Installed in this configuration, the antenna exhibits very low reflectivity, even when the input ports are mismatched. The normal incidence reflectivity is approximately -40 dB for a majority of the frequency range.
The Model 3165-01 is a dual-linearly polarized antenna, capable of measuring two orthogonal components of the field simultaneously.
Electrical Specifications
| Frequency Minimum | 700 MHz |
| Frequency Maximum | 6 GHz |
| Cross Polarization Isolation | > 25 dB |
| Impedance | 50 Ω |
| Pattern Type | Directional |
| Polarization | Dual Linear |
| Maximum Continuous Power | 5 watts |
| Connectors | (2) SMA Female |
