RFxpert RFX

RFxpert RFX

(Now Obsolete) The RFX is a compact bench-top scanner that characterizes antennas in your own lab environment in real-time. RFX provides far-field patterns, bisections, EIRP and TRP in less than a second. Novel near-field results, including amplitude, polarity and phase give insights into the root causes of antenna performance challenges and help troubleshoot far-field radiation patterns. RFX can also integrate with a network analyser to measure gain, efficiency and S11 of an antenna, and with a base station emulator to test cell phones. Users can execute real-time analysis of their embedded antenna designs and test multiple design iterations, on the lab bench, in seconds at each stage of the design process. RFX also gives wireless engineers the freedom to do rapid prototyping and explore new designs, new materials and new forms. Wireless engineers and designers can test multiple design variations and optimize complex embedded antenna designs at their lab bench in seconds without wasting time waiting in congested anechoic chamber lines. The RFX allows design teams to reduce testing time by at least one order of magnitude. The RFX provides antenna designers and wireless engineers with an easy to- use, cost-effective, and proven table-top solution. With its real-time capability, RFX is a perfect tool to improve the design process for manufacturers of cellular, GPS, WiFi, RFID, Bluetooth, LTE, MIMO, custom and medical devices.

Key Features

  • Frequency Range 300 MHz – 6 GHz
  • Measurement sensitivity 0dBm

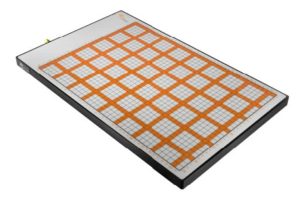

  • Antenna array of 384 (24 x 16)H field probes
  • Characterizes antennas in less than one second
  • Reduces testing time
  • Easy to use and cost effective
  • Maximum radiator size L 16cm x w 10cm (L 6.30”x W 3.94”)
