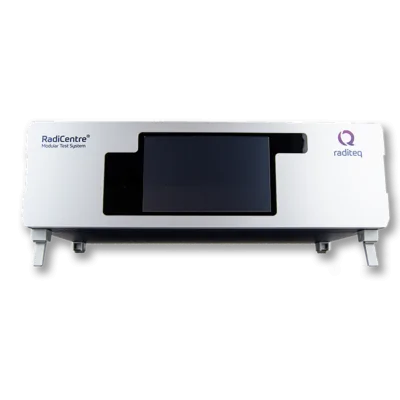

CTR1004B Dual Slot Modular EMC Test System + GPIB Input

The standard modular test system of the RadiCentre® series. With two available slots for Raditeq plug-in cards the RadiCentre® can be used to make integrated EMC systems. In combination with RadiMation® the EMC engineer can create a fully automated EMC setup and effortlessly perform EMC tests and measurements.

Specifications

• Number of Slots: 2
• Model type: Desktop or 19″ rack mountable
• Interface: USB, LAN and IEEE-488
• Cables inputs: USB cable, IEC power cord
• Interlock system: 6,35mm jack plug connection to safety system disables Interlock & Interlocked laser outputs when triggered. For further technical specifications, please refer to datasheet

RadiCentre Pro + GPIB Including:

• PRO2001B – ARM Processor plug-in card – USB | LAN | GPIB
• PSU1250A – Power supply plug-in card – 250W
• AC/DC Power Cable
• USB Connection Cable

Raditeq Plug-in Cards:

• RadiSense The LASER powered range of EM Field Sensors (range up to 40GHz)
• RadiField Integrated EMC Immunity Test Solution 1 to 18 GHz
• RadiPower The range of power meters up to 18 GHz for EMC applications
• RadiGen The range of RF signal generators up to 6 GHz for EMC applications
• RadiSwitch To switch one, two, four or six RF signals up to 40 GHz
• RadiCoupler® Coupling Decoupling Networks
