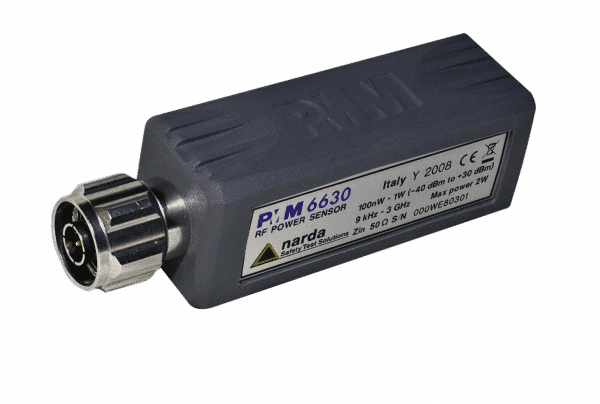

6630 USB RF Power sensor

6630 USB RF Power sensor

Accurate in laboratory, fast in manufacturing and solidly built for field applicationsPMM 6630 is the ideal solution for RF power measurements in a wide variety of applications, including EMC immunity test systems to calibrate CDN and Clamps as well as to measure the input power of antennas or GTEM...

Description

Accurate in laboratory, fast in manufacturing and solidly built for field applicationsPMM 6630 is the ideal solution for RF power measurements in a wide variety of applications, including EMC immunity test systems to calibrate CDN and Clamps as well as to measure the input power of antennas or GTEM cells

Together with a directional coupler both direct and reflect power can be measured easily and precisely. The PMM 6630 is supplied with easy to use PC software to display the measurements in dBm, W, Vrms.

Key Features

  • 9 kHz to 3 GHz frequency range
  • 100 nW to 1 W (-40 to +30 dBm) input range
  • Excellent power linearity (0.2 dBm typical)
  • True RMS response across 70 dB dynamic range enables accurate CW and modulated power measurements
  • Low current consumption to save laptop battery
  • No need for a Reference Calibrator
  • Lightweight, convenient and easy to use with desktop and laptop PC
