3250 / 3252 / 3302 Transformer Test System

3250 / 3252 / 3302 Transformer Test System

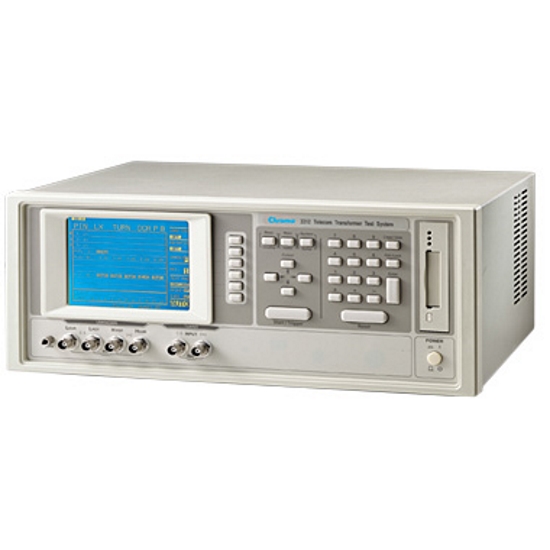

The Chroma 3250 / 3252 / 3302 Transformer Test System is designed for transformer production lines or incoming/ outgoing inspection in quality control processes, with high stability and high reliability.

The 3250 / 3252 provides 20Hz-200kHz test frequencies, and the 3302 provides 20Hz-1MHz test frequencies. In addition to transformer scanning test functions, the 3252 / 3302 has LCR Meter functions.

The 3250 / 3252 / 3302 cover most of transformer’s low-voltage test parameters which include primary test parameters such as Inductance, Leakage Inductance, Turns-Ratio, DC resistance, Impedance, and Capacitance (between windings) etc.; secondary test parameters such as Quality Factor and ESR etc.; and pin-short test function. High-speed digital sampling measurement technology combined with a scanning test fixture (A132501) enables low-efficiency transformer inspection to be more accurate and faster.

The 3250 / 3252 / 3302 provides several output impedance selections to solve inductance measurement error. An equivalent turns-ratio calculated from measured inductance of windings is also provided to improve turns ratio measurement error problems caused by large magnetic flux leakage in transformer with low permeability magnetic cores.

Category:

Key Features

  • Test frequency: 20Hz-200kHz/1MHz, 0.02% accuracy
  • Basic accuracy: 0.1%
  • Different output impedance modes, measurement results are compatible with other well-known LCR meters
  • Enhanced Turn Ratio measurement accuracy for low permeability core
  • Fast Inductance/ Turn Ratio measurement speed up to 80 meas./sec
  • Fast DCR measurement speed up to 50 meas./sec
  • Graphical and tabular display of swept frequency, voltage current and bias current measurements (3252/3302)
  • Build-in 8mA bias for RJ45 transmission transformer saturation condition (option)
  • Leakage inductance 100 bin sorting and balance of leakage inductance for TV inverter transformer
  • ALC (Auto Level Compensation) function for MLCC measurement (3252/3302)
  • Test fixture residual capacitance compensation for transformer inductance measurement
