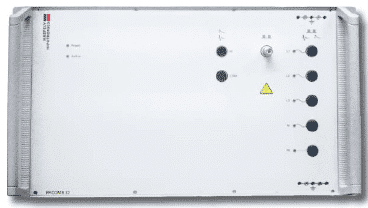

FP-COMB 32 Coupling/Decoupling Network

FP-COMB 32 Coupling/Decoupling Network

The FP-COMB 32 coupling/decoupling network – for Surge Combination Wave, Ring Wave and EFT/Burst – is fully compliant with the standard...

Description

The FP-COMB 32 is a combined automatic three-phase Coupling/Decoupling Network (CDN) for Surge Combination Wave, Ring Wave and EFT/Burst. It is fully compliant with the standard requirements of IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-12, ANSI C62.41 and others.

It is designed to allow users to efficiently set up and perform tests together with the AXOS series expandable immunity test systems. The CDN automatically changes the coupling paths, phase angles and source impedance based on test parameters set by the user via the AXOS5 and/or AXOS8 controllers.

Key Features

  • Automatic Three Phase CDN
  • Versatile CDN for Surge Combination Wave, Ring Wave and EFT/Burst
  • Accurate phase angle synchronisation
  • Line Voltage 480VAC / 480VDC line to line
  • 32A EUT current per phase

Application Notes

Manufacturer

Downloads

There is no technical specification to download at this time, if you would like more information regarding this product please click here
