ETS-Lindgren AMS-5705 5G CATR Antenna Measurement System
The AMS-5705 CATR by ETS-Lindgren is a 3D measurement system optimized for 5G FR2 mmWave wireless devices. It operates within a frequency range of 24-43.5 GHz and is ideal for both 3GPP and 5G performance testing, including EIRP, TRP, EIS, TIS, and radio interoperability. This system can handle millimeter wave antenna arrays of up to 30 cm in diameter, with or without antenna feed ports.

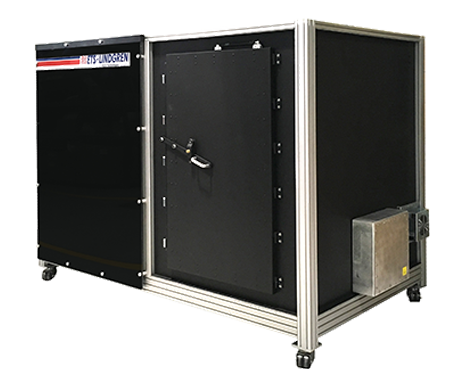

The AMS-5705 is a mobile RF-shielded anechoic enclosure that can be easily moved between benches and rooms. Its compact size makes it perfect for use in limited space environments and for sharing among multiple groups.
For data acquisition and analysis, the AMS-5705 utilizes ETS-Lindgren’s EMQuest EMQ-100 Antenna Measurement Software. This powerful software is capable of fully parameterized test methods to measure passive antenna performance. EMQuest EMQ-100 excels at active radiated performance testing for all 5G technology variants, from mmWave radios to Massive MIMO base stations. Whether you’re designing antennas for stand-alone applications or testing an embedded antenna system against industry standard OTA radiated performance test requirements, EMQuest EMQ-100 offers the flexibility to meet all of your testing needs.
