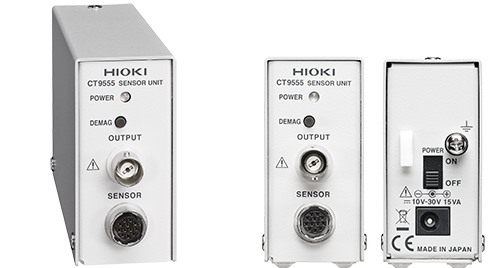

CT9555 Sensor Unit

Product enquiry for CT9555 Sensor Unit

More InfoQuote

Hioki pull-through current sensors and clamp on current probes are best-in-class current sensing devices for use with power meters, Memory HiCorders and high performance oscilloscopes.

The CT9555 is 1-channel sensor unit and power adapter for any of the CT686x series, 9709 and CT684x series current sensors and probes that provides waveform output.

Basic specifications (Accuracy guaranteed for 1 year, Post-adjustment accuracy guaranteed for 1 year)

Connectable current sensors Current sensors with a Hioki ME15W (male) output connector (CT686x-05, 9709-05, CT684x-05, etc.)
*The separately available Conversion Cable CT9900 is required in order to use a current sensor equipped with a PL23 (10-pin) terminal
Output Terminal BNC Terminal
Output voltage Waveform output: 2 V f.s.
Output resistance 50 Ω
Operating temperature range -10 °C to 50 °C (14 °F to 122 °F)
Power supply AC Adapter Z1008 (100 to 240 V AC, 50/60 Hz, maximum rated power when used with sensors: 45 VA)
External power supply (10 to 30 V DC; maximum rated power: 15 VA)
Dimensions and mass 33 mm (1.30 in)W × 67 mm (2.64 in)H × 132 mm (5.20 in)D (excluding protruding parts), 200 g (7.1 oz)
Accessories AC Adapter Z1008 ×1, Power cord ×1, Instruction manual ×1

Key Features

  • Power supplies for high-precision current sensors with waveform output functionality (CT9555)
