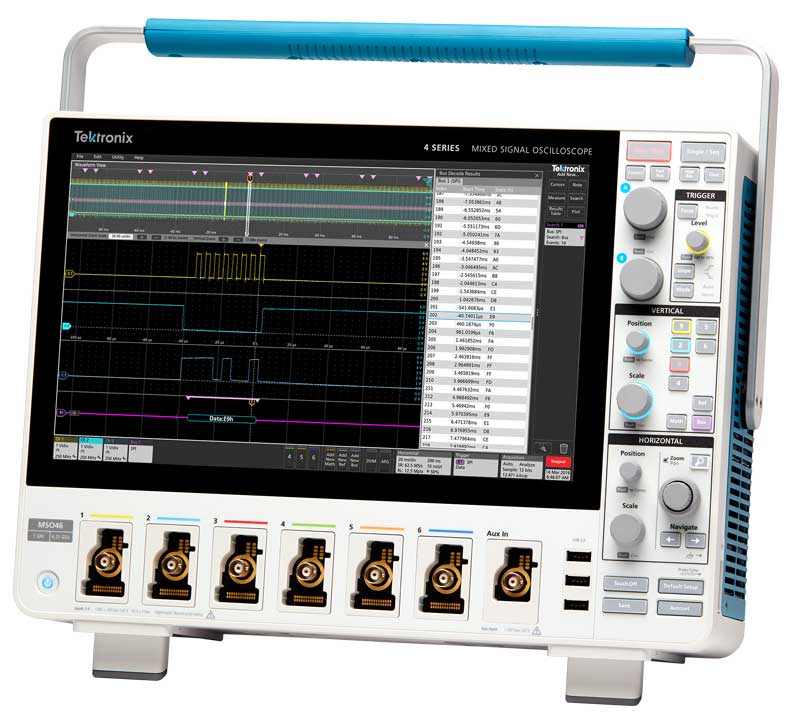

Tektronix 4 Series MSO Mixed Signal Oscilloscope

Tektronix 4 Series MSO Mixed Signal Oscilloscope

Biggest display in its class and award-winning user interface

With the same made-for-touch user interface technology as the award-winning 5 Series and the largest and highest resolution display in its class, the 4 Series MSO sets a new expectation of how a scope should work.

  • 13.3-inch HD display
  • 6.1-inch (15.5 cm) deep bench-friendly footprint
  • Outstanding details and up to 6 super-flexible channels

  • Any channel can show a waveform, spectrum, or both
  • Any input can be used to view eight digital channels by connecting a logic probe
  • Outstanding detail and accurate measurements on all channels
  • 12-bit vertical resolution (16-bit in high res mode)
  • 6.25 GS/s on all analog and digital channels
  • Up to 62.5 Mpoints record length
  • SKU: MSO44 Category:

    Key Features

    Input Channels

  • 4 or 6 FlexChannel inputs
  • Each FlexChannel provides 1 analog signal input or 8 digital logic inputs with TLP058 probe
  • Bandwidth

  • 200 MHz, 350 MHz, 500 MHz, 1 GHz or 1.5 GHz
  • Sample Rate

  • 6.25 GS/s on all analog/digital channels
  • Record Length

  • 31.25 or 62.5 Mpoints
  • Vertical Resolution

  • 12 bits
  • Up to 16 bits in High Res mode
  • Signal Generation

  • Arbitrary, Sine, Square, Pulse, Ramp, Triangle, DC Level, Gaussian, Lorentz, Exponential Rise/Fall, Sin(x)/x, Random Noise, Haversine, Cardiac
  • Digital Voltmeter

  • 4-digit AC RMS, DC
  • DC+AC RMS voltage
  • Trigger Frequency Counter

  • 8-digit
  • Advanced Analysis

  • Spectrum View Mixed Domain Analysis
  • Automated Power Measurements
  • 3-Phase Power Measurements
  • Protocol Support

  • 10BASE-T, 100BASE-TX
  • CAN, CAN FD, LIN, FlexRay
  • I2C, SPI
  • MIL-STD-1553, ARINC 429
  • RS-232, RS-422, RS-485, UART
  • SPMI
  • SVID
  • USB 2.0 LS, FS, HS
  • Display

  • 13.3-inch (338 mm)
  • HD color (1920 x 1080) capacitive touchscreen
  • Dimensions (H x W x D)

  • 287 mm x 405 mm x 155 mm
  • (11.3 in x 15.9 in x 6.1 in)
  • Weight

  • 16 lbs (7.3 kg)
