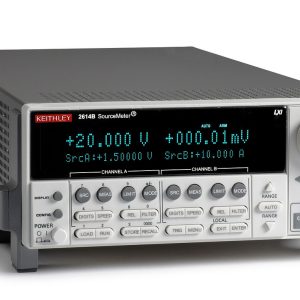

Tektronix 2614B Source Measurement Unit

Tektronix 2614B Source Measurement Unit

The Series 2600B System SourceMeter SMU Instruments are the industry’s leading current/voltage source and measure solutions, and are built from Keithley’s third generation SMU technology. The Series 2600B offers single- and dual-channel models that combine the capabilities of a precision power supply, true current source, 6½-digit DMM, arbitrary waveform generator, pulse generator, and electronic load – all into one tightly integrated instrument. The result is a powerful solution that significantly boosts productivity in applications ranging from bench-top I-V characterisation through highly automated production test. Built-in web browser based software enables I-V testing through any computer from anywhere in the world. Or, use your Android smart device to perform plug & play I-V testing with fingertip control with the Keithley IVy application.

For automated system applications, the Series 2600B’s Test Script Processor (TSP®) runs complete test programs from inside the instrument for industry-best throughput. In larger, multi-channel applications, Keithley’s TSP-Link® Technology works together with TSP Technology to enable high-speed, SMU-per-pin parallel testing. Because Series 2600B SourceMeter SMU Instruments have fully isolated channels that do not require a mainframe, they can be easily reconfigured and re-deployed as your test applications evolve.

SKU: 2614B Category:

Key Features

  • Tightly integrated, 4-quadrant voltage/current source and measure instruments offer best in class performance with 6½-digit resolution
  • Family of models offer industry’s widest dynamic range: 10 A pulse to 0.1 fA and 200 V to 100 nV
  • Built-in web browser based software enables remote control through any browser, on any computer, from anywhere in the world
  • Compatibility with the Keithley IVy mobile app enables true plug and play I/V characterisation and test through any Android device
  • TSP (Test Script Processing) technology embeds complete test programs inside the instrument for bestin-class system-level throughput
  • TSP-Link expansion technology for multi-channel parallel test without a mainframe
  • Software emulation for Keithley’s 2400 SourceMeter SMU Instrument

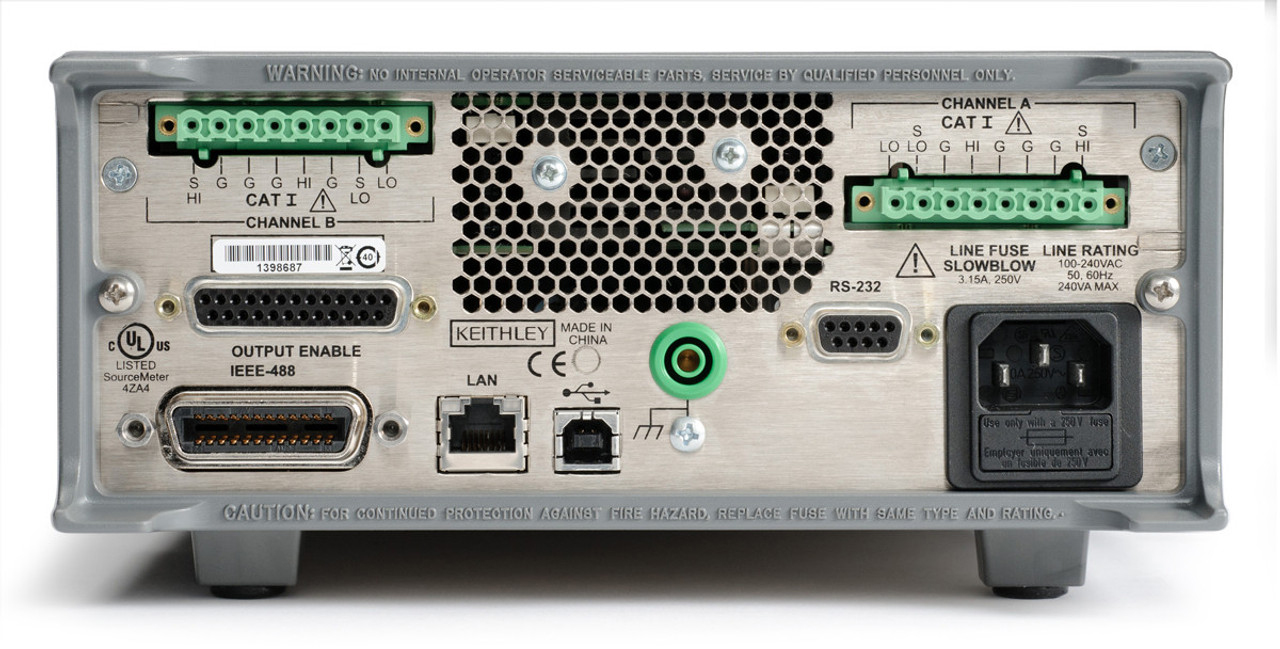

  • USB 2.0, LXI-C, GPIB, RS-232, and digital I/O interfaces
  • Free software drivers and development/debug tools
  • Optional ACS-Basic semiconductor component characterisation software
